The new generation of Z94 series high efficient, low noise with super performance automatic nail making machine is mainly used for manufacturing steel nails. The machine is also able to manufacture other steel nails with special specifications, such as double-cap nail, felt nail, V-nail, corrugated plate nail, U-nail, injecting-nail, gun nail and etc. after little reformation. The manufactured nails can be extensively used in industry, building, repairing and etc.
Machine Size
Model | Diameter of nails | Length of nails | Designed speed | Motor | Dimension (L*W*H) | Weight |
Z94-1C | 0.9-16. mm | 9-25mm | 450PCS/min | 1.5kw | 1.5*1.3*1.1m | 1.2tons |
Z94-2C | 1.2-2.8mm | 16-50mm | 380PCS/min | 2.2kw | 1.7*1.3*1.4m | 1.45tons |
Z94-3C | 1.8-3.5mm | 30-75mm | 320PCS/min | 3kw | 2.0*1.4*1.4m | 1.8tons |
Z94-4C | 2.8-4.5mm | 50-100mm | 260PCS/min | 4kw | 2.2*1.6*1.6m | 2tons |
Z94-4C(2) | 2.8-5mm | 50-120mm | 260PCS/min | 4kw | 2.3*1.6*1.3m | 2.1tons |
Z94-5.5C | 3.8-5.5mm | 75-150mm | 220PCS/min | 5.5kw | 2.5*1.8*1.5m | 2.3tons |
Z94-5.5C(2) | 3.8-5.0mm | 75-180mm | 220PCS/min | 5.5kw | 2.5*1.8*1.5m | 2.3tons |
Z94-6C | 4-8mm | 80-200mm | 180PCS/min | 11W | 3.4*1.9*1.5m | 3tons |
Z94-8A | 5-10mm | 180-320mm | 120PCS/min | 22kw | 6*2.1*1.9m | 10tons |

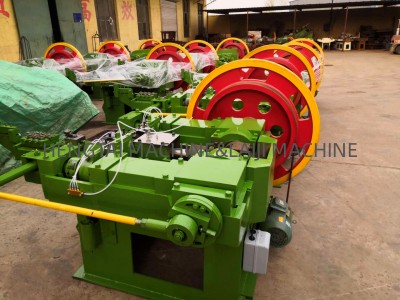

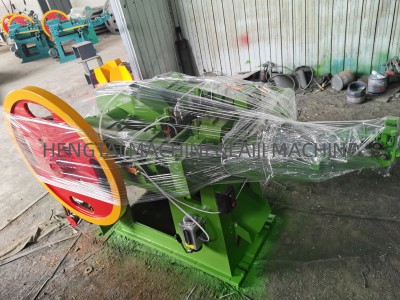

Machine picture
