Hot Selling Chain Link Fence Machine In India

Release time:2022-12-05

The chain link fence machine can use diameter 1.3-4.0mm galvanized wires and PVC coated wires and other materials,the raw material tensile strength can be 350-800MPA  to produce chain link fences,adopts servo motor to weave,PLC and touch screen to control,automatic twisting edge or knuckling edge,automatic rolling m esh.These fences are mainly used as airport fences,playground fences,high way fences,railway fences and so on.

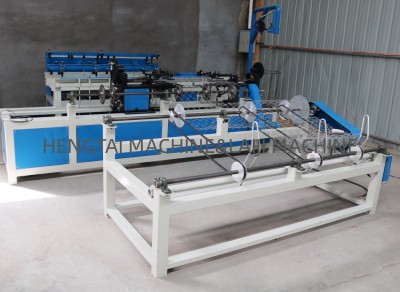

Machine Picture



Machine Size

Wire Diameter


1.5-4mm

Mesh Size


30*30-120*120 mm

Max. Mesh Width


3 m

Max. Mesh Length


20 m

Production


30-120 square meters/hour.

Motor power for winding


0.75kw

Motor power for parting tool


1.5kw

Weight


3000 kg

Dimension


6700*1530*1700mm
Raw MaterialHigh-quality low-carbon steel wire, Galvanized, stainless wire, Aluminum alloy wire, PVC Coated wire.

We can design the machine according to your requirements

Application

 Used as fencing for sports groud, river banks, construction, residence and animal fencing.
