Roll Mesh Wire Mesh Welding Machine for Construction Works

Release time:2022-11-02

Automatic wire mesh welding machine for roll mesh


This machine is improved by our company according to the needs of customers.the machine has added an intelligent roll mesh system on the basis of the original one,which can adjust the roll mesh speed according to the welding speed of the machine, so as to make the mesh roll even and beautiful.after the mesh roll is bundled, the system will automatically unload the mesh roll, saving labor.

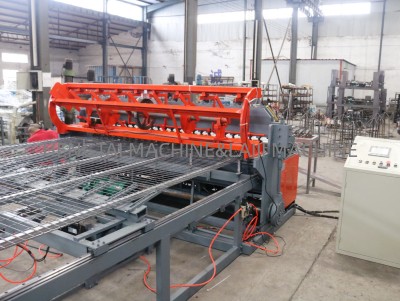

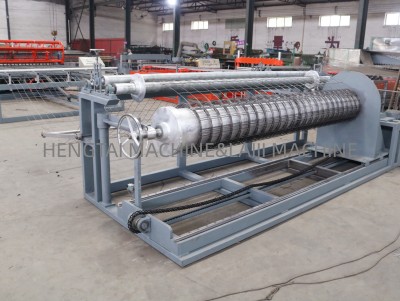

Machine pictures

Mechanical advantages


1  The mesh size is directly set on the touch screen, which is convenient and simple.2  Vibration device is added to the cross wire feeding system to prevent wire winding.
3  The line wire automatic wire feeding and the cross wire are pre-straightening and cutting.
4  Cross wire adjustment on screen, line wire adjustment need move the welding electrode.
5  The mesh roll length can be set by the control panel.
6  We can easily adjust the welding current when we need to weld different wire diameters.
7  We can set the output and stop the machine automatically after the mesh production finished.
8  The finished product roll mesh is smooth and the error of opposite angle line is small.


Machine Specfication:


Model

HT-HLW-2000

HT-HLW-2500

HT-HLW-3000

Mesh width

Max.2000 mm

Max.2500 mm

Max.3000 mm

Mesh hole size

100-300mm

100-300mm

100-300mm

Wire diameter

3.0-5.0 mm

3.0-5.0 mm

3.0-5.0 mm

Welding speed

40-80 Times/min

40-80 Times/min

40-80 Times/min

Transformer

150KVA*3

150KVA*4

150KVA*4

150KVA*5

150KVA*5

150KVA*6

Dimensions

8.5 X 2.5 X 1.65 m

9.5 X 3.0 X 1.65 m

12 X 3.5 X 1.65 m

Weight

4900 KG

5200 KG

6500KG
