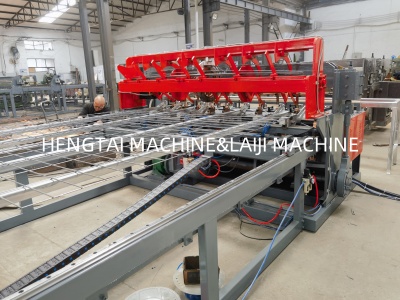

Sales of construction steel fence mesh welding machine, fully automatic steel mesh welding machine, underfloor heating mesh welding machine
Line wrie will be cut in advance and fed by hand.the cross wire will fall automatically from the hopper.which keep the mesh surface is very flat. The hopper adopts the step motor control
The greatest advantage is that you can adjust the distance of cross wire at random on the same one piece wire mesh sheet very easily, and only need to set the any space required on the touch screen.
Technology Parameter
| Item | Wire Diameter | 3.0-6.0mm |
|---|---|---|
| 1 | Line Wire Spacing | 50-300 mm |
| 2 | Cross Wire Spacing | 20-300 mm |
| 3 | Welding Width | 1000 mm,1500 mm, 2000 mm, 2400 mm,3000 mm |
| 4 | Mesh Length | 0.5-12.0 m |
| 5 | Line Wire Feeding Way | Pre-cut&straight wire,Manually placing iron wires |
| 6 | Cross Wire Feeding Way | Pre-cut&straight wire，Automatic wire dropping from the hopper |
| 7 | Voltage | 220V /380V /415V /440V /customized |
| 8 | Welding wire material | Low carbon steel wire,Galvanized wire, black wire. |
The Welding Process as follow:
1.Manually load lots of crosswires together to the up crosswire feeding box and feeding the longitudinal wire manually one by one
2.Press the "start" button
3. Automatically feed the crosswire to the welding station gate
4.Longitudinal pitch feed automatically
5.Cylinder press at one time and welding one by one then replacement
6.Drawing mesh system feed the metal mesh to the next welding station
7.Cross wire and Longitudinal wire feed automatically
8.Cylinder press at one time and welding one by one then replacement
9.Repeat the welding process until finish the full welding.
