Chicken feed cage chicken layer cage mesh welding machine uesd for produce welded wire mesh,chicken cage mesh.
This machine adopts electrical & electronic control technique, both welding time and separate-control welding is composed of digital and integrated electric circuit. The operation is accurate, it has stable function, firm welded point, it is easy to learn and operate.Drawing mesh system adopts elastic tension and opening positioning mesh, it is easy to regulate mesh hole, and mesh opening size is rather accurate, welding aperture could adjust randomly within range.

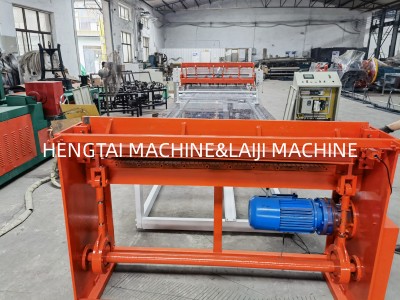

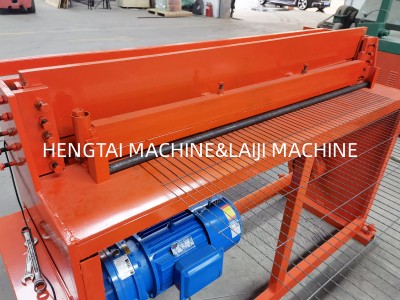

Machine picture
Machine Size
Model | HT-HLW-1200 |
Wire diameter | 2-4mm |
Line wire space | 50-200mm |
Crosswire space | Min.20mm |
Mesh width/height | Max.1.2m |
Mesh length | Max.6m |
Welding speed | Maximum 50-80times/minute |
Welding electrodes | 41pcs |
Welding transformers | 125kva |
Wire feeding way | Pre-straightened&pre-cut |
Overall Size | 6*2.3*1.7m |
Weight | 3500kg |
Application
Cage mesh used for :Poultry cage, chicken layer cage,dog cage,pet cage, pigeon cage
Wire materials: Low carbon steel wire.
Chicken cage mesh also called Egg Layer Coop
