Positive and negative twisting hexagonal mesh weaving machine
China professional manuafacturer hexagonal wire mesh netting machine price
Machine Description
Hexagonal Wire Netting machine enables continuous production of hexagonal wire meshes with high speed. It features are stable operation, low noise, automatic stopping for broken wire, broken net and preset length and warning, equal and order mesh, clip ribs at optional location, centralized lubrication, easy operation and maintenance, as well as tight and enduring.This machine is used to used to make hexagonal mesh, which is used for husbandry, farming, fencing, chemical industrial etc.
Machine Parameter
Raw material | Low carbon iron wire,Galvanized wire, PVC coated wire |
Wire diameter | 0.5-0.8 mm |
Mesh size | 1/2"(15mm); 1"(25mm or 28mm); 2"(50mm); 3"(75mm or 80mm) |
Mesh width | Normally 2600mm,3000mm,3300mm,4000mm,4300mm,5000mm |
Working speed | For 1/2’’ mesh size, it is about 60-65M/h, for 1’’ mesh size, it is about 95-100M/h; For 2’’ mesh size, it is about 150-160M/h, for 3’’ mesh size, it is about 180M/h |
Motor capacity | 2.3kw+2.3kw+2.3kw+5.7kw+0.75kw |
Number of twist | 6 |
Note | 1.One set machine can only do one mesh opening. 2.We accept an special orders from any clients. |

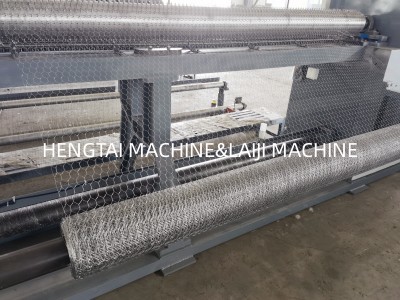

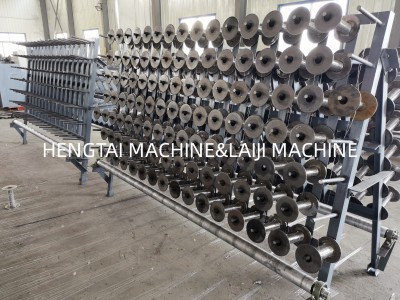

Machine Picture
